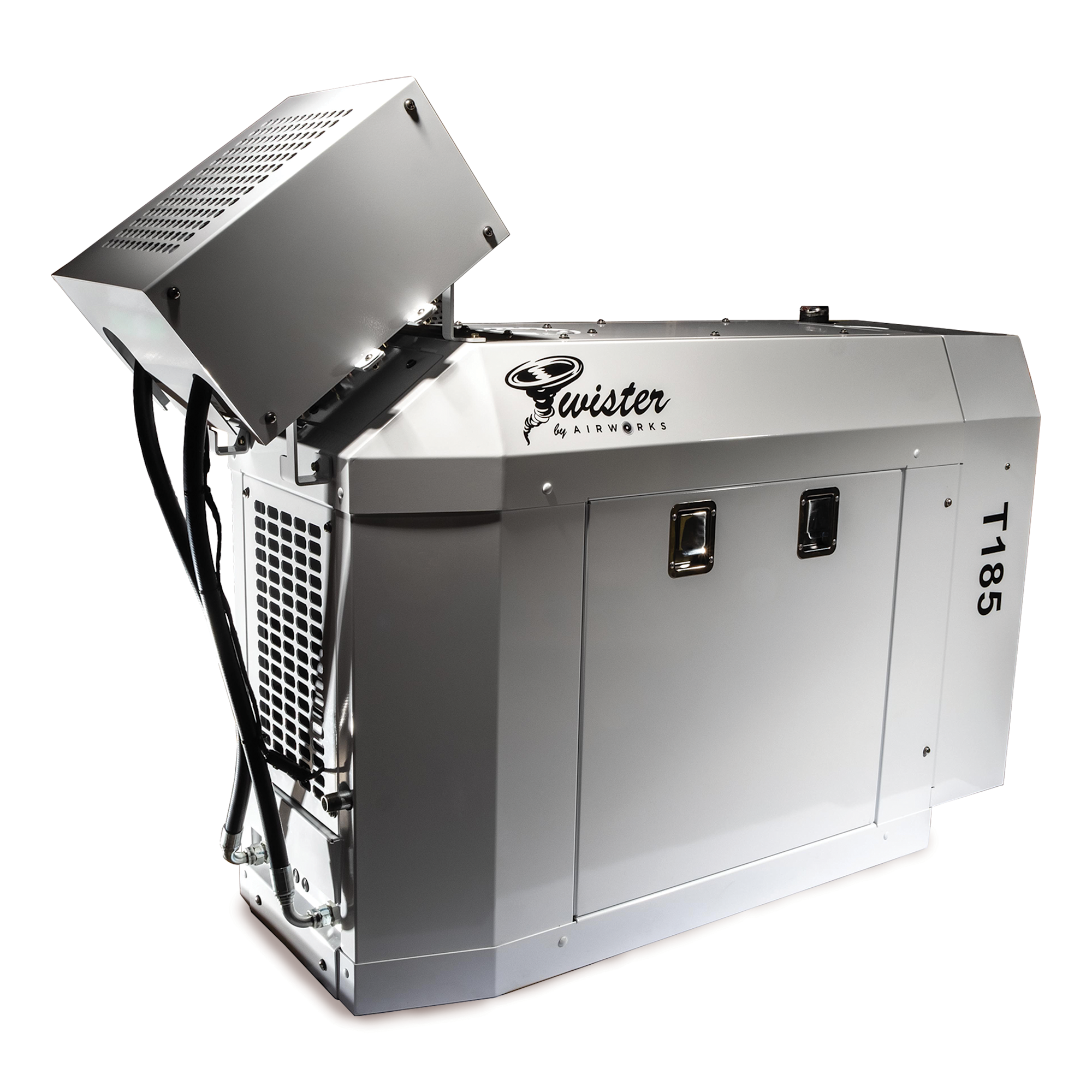

Twister T185 EVO

  • 185 CFM at 100 PSI

  • Diesel Powered

  • Tier 4 Final

Manuals & Drawings

View Unit In My Space

Preview this unit on your service vehicle or in the space where you plan to install it. Use your phone to explore its placement at the model’s supplied scale.

Confirm dimensions, mounting requirements, and service clearances against the installation drawings before fitting equipment.

The 3D model is loading.

View Twister T185 EVO in your space

Scan this code with your phone’s camera to open this product page. Then tap View Unit In My Space.

Use the link below to open this page on your phone.

Open product page

Use Safari on iPhone or Chrome on an AR-capable Android phone. Your phone will request any camera permission it needs.

Twister T185 EVO In Numbers

185 CFM

100%

175 PSI

at 100 PSI

Duty Cycle

Maximum Pressure

An extremely high-output, Tier 4 Final certified, diesel-powered compressor. The Twister T185 can service everything from heavy construction equipment, to providing instrumentation air.



Standard Features

  • 66" x 23" x 53" (55" x 23" x 40" without the Extreme Duty Cooler)

  • 1,194lbs Dry Weight

  • Air up to 185 CFM / 100 PSI

  • Maximum pressure can be set between 135-175 PSI

  • Auto Stop/Start

  • Tier 4 Certified and Yanmar Powered

  • Safety Shutdown Protection

  • Over Temperature Protection

  • Continuous Duty

  • Auto Idle Control

  • Aluminum Enclosure

  • Powder Coated Finish

  • Wired Remote Controls

  • Hour Meter

  • Internal Vibration Isolation

  • Comprehensive Warranty

  • Easy Installation

Optional Features

  • Higher Pressure Up To 235 PSI

  • Custom Powder Coating

  • Direct Mount Hydraulic Pump

  • Generator 6 Kw 120/240V

  • Welder

  • Gauge Package

  • Remote Mount Radiator

  • 12/24 Volt D.C. Booster Pak

  • Automatic Positive Air Shut Off

  • Electric Manual Positive Air Shut Off

  • Arctic Package

  • Exhaust Scrubber

  • Fuel Tank

  • Heli-Portable Package

  • Ultra-Lite Weight Reduction Package
