The EVO Series

Overview

The EVO series of compressors is our flagship product lineup, offering massive amounts of compressed air in a sleek, compact package, with the reliability that you can count on, no matter where you go. Every single EVO utilizes an extremely durable rotary screw air end, an aerospace-grade aluminum enclosure, and can operate with a 100% duty cycle in all weather.

The Models

Output

  • Twister T80 EVO - Rated for 80 CFM at 100 PSI @ 7.6l per hour

  • Twister T100 EVO - Rated for 100 CFM at 100 PSI @ 7.7l per hour

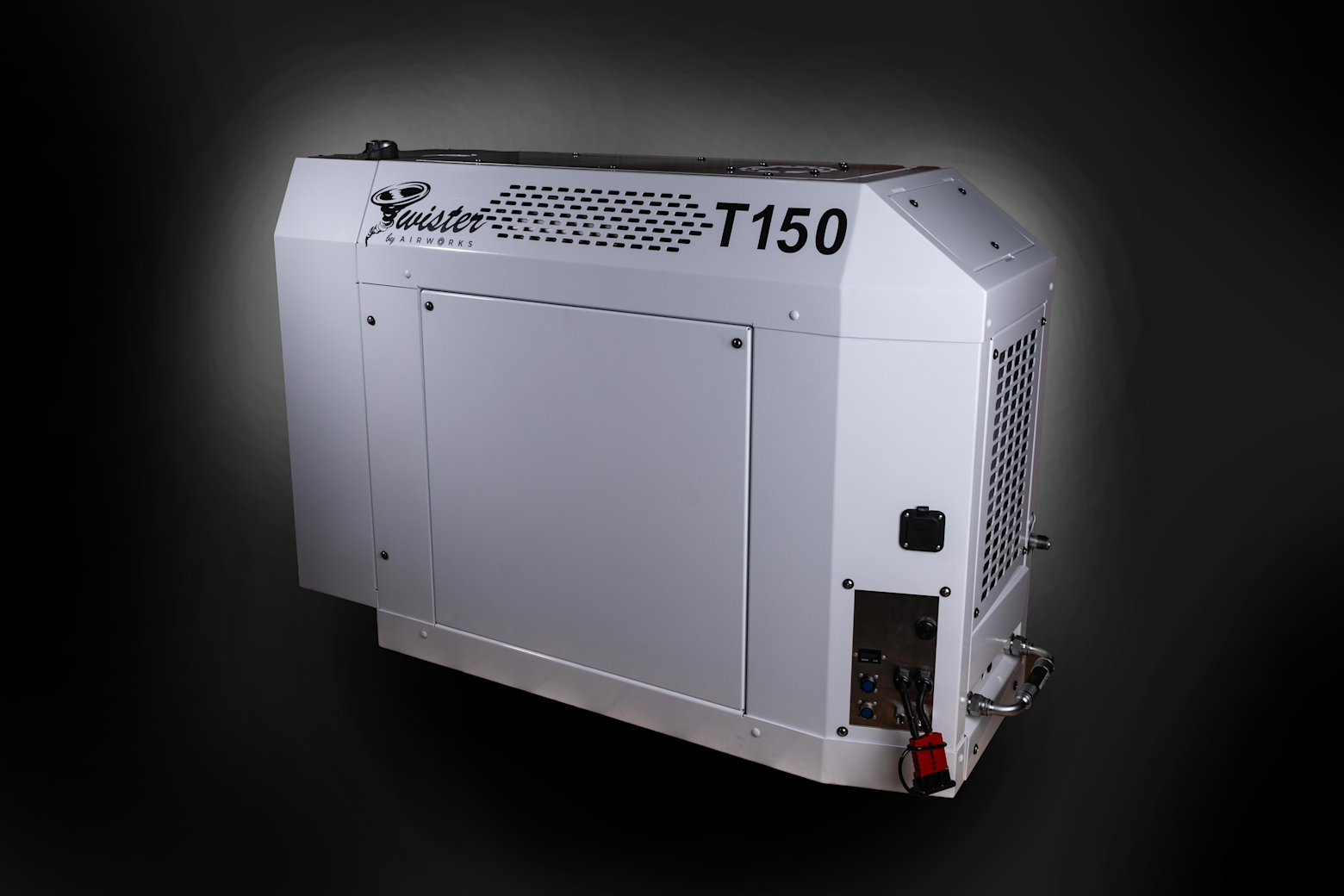

  • Twister T150 EVO - Rated for 150 CFM at 100 PSI @ 8.1l per hour

  • Twister T185 EVO - Rated for 185 CFM at 100 PSI @ 8.6l per hour

  • Twister T235 EVO - Rated for 235 CFM at 100 PSI @ 9.2l per hour

Dimensions & Dry Weight

  • Twister T80-100 EVO - 55" x 23" x 40" - 1,162lbs

  • Twister T150-235 EVO - 55" x 23" x 54"* - 1,194lbs

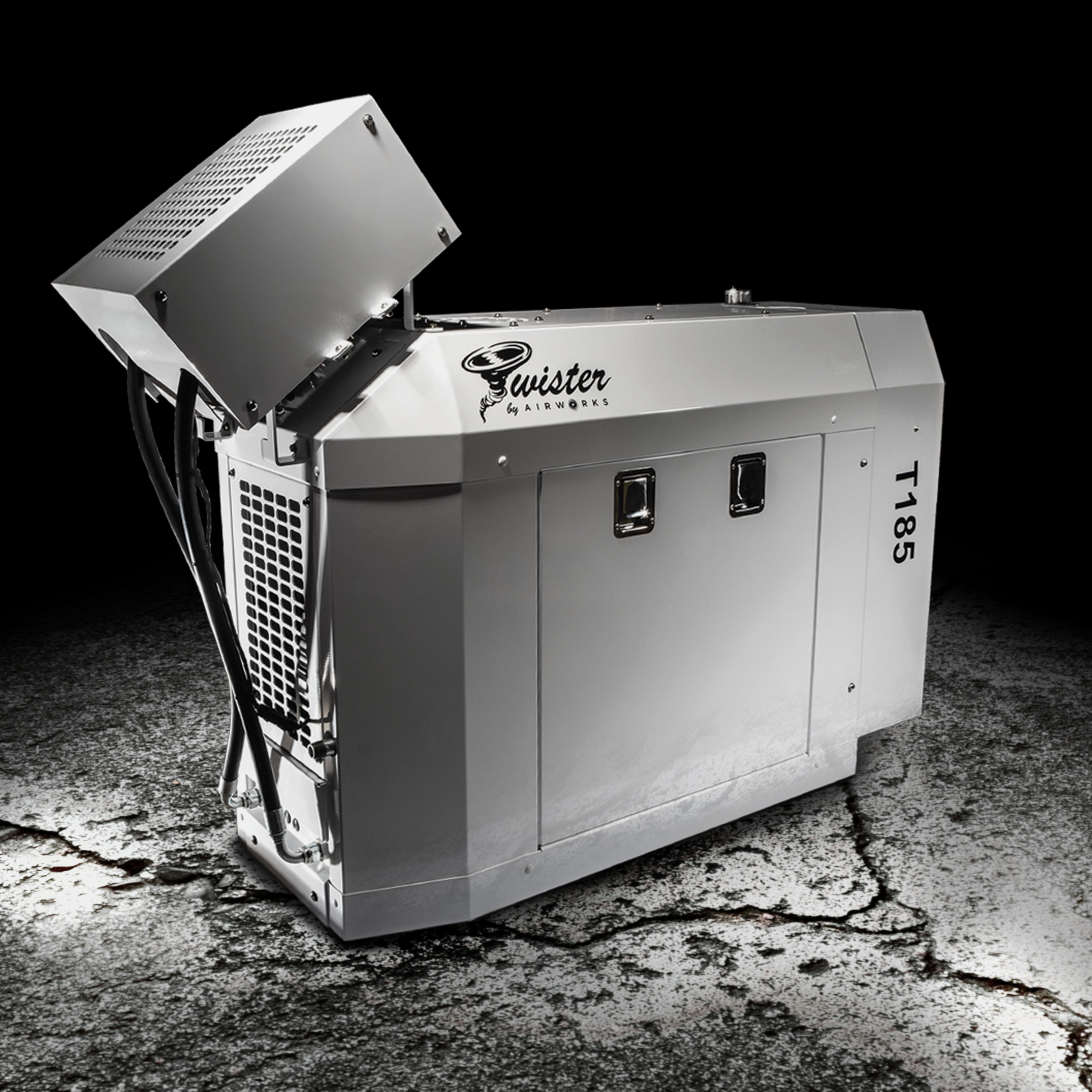

*T150+ EVO units require the installation of an extreme-duty cooler. By default, this is mounted on the front of the compressor, hence the larger dimensions. If this unit is relocated to another location on the service vehicle, the T150+ units are the same 55"x23"x40" as the smaller units.

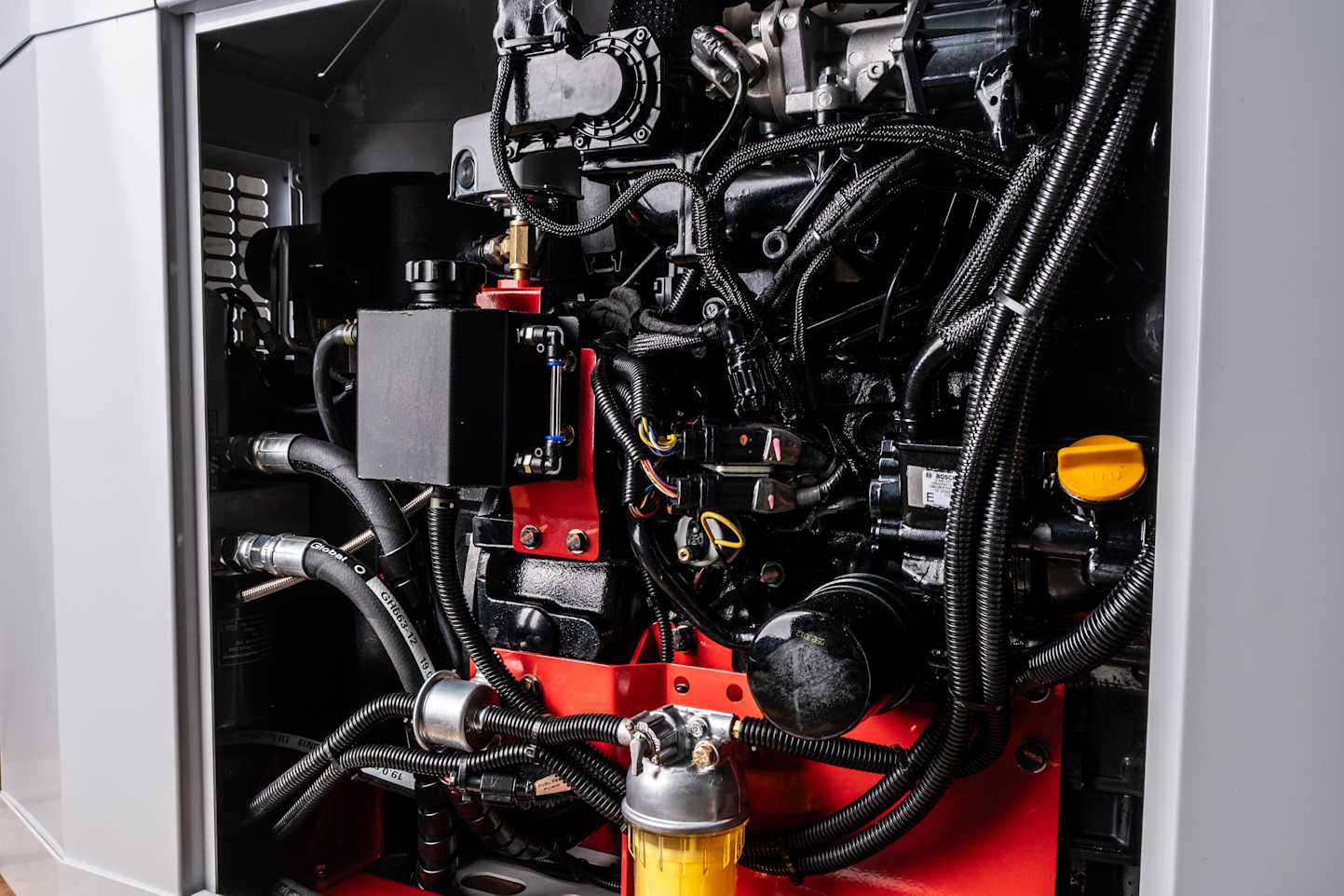

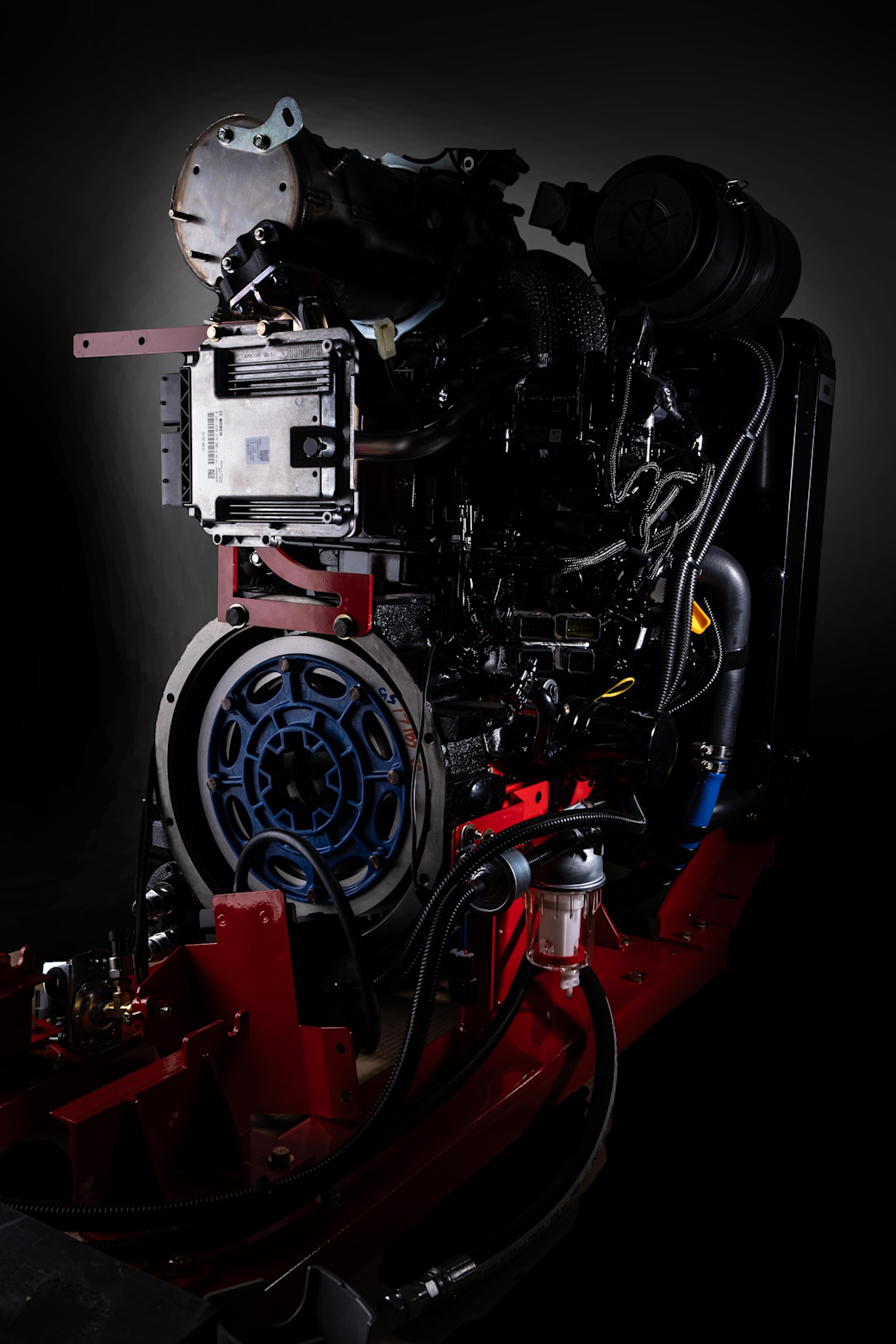

Tier 4 Final Engine

The engines selected for our EVO series of compressors utilize a combination of advanced piston geometry, high-pressure common rail fuel injection, and exhaust gas recirculation technology that reduces combustion temperature. This combination reduces particulate emissions by 98%, and gives our compressors best-in-class fuel efficiency in the process.

This design provides the rugged durability to provide a steady, powerful, stream of compressed air in the toughest of conditions, all without the need for diesel particulate filters, or other additional service items that typically come with high-tech engines.

By purchasing a Tier 4 Final product, you are future-proofing your business for future green legislation, and improving the health and safety of your workers in the process.

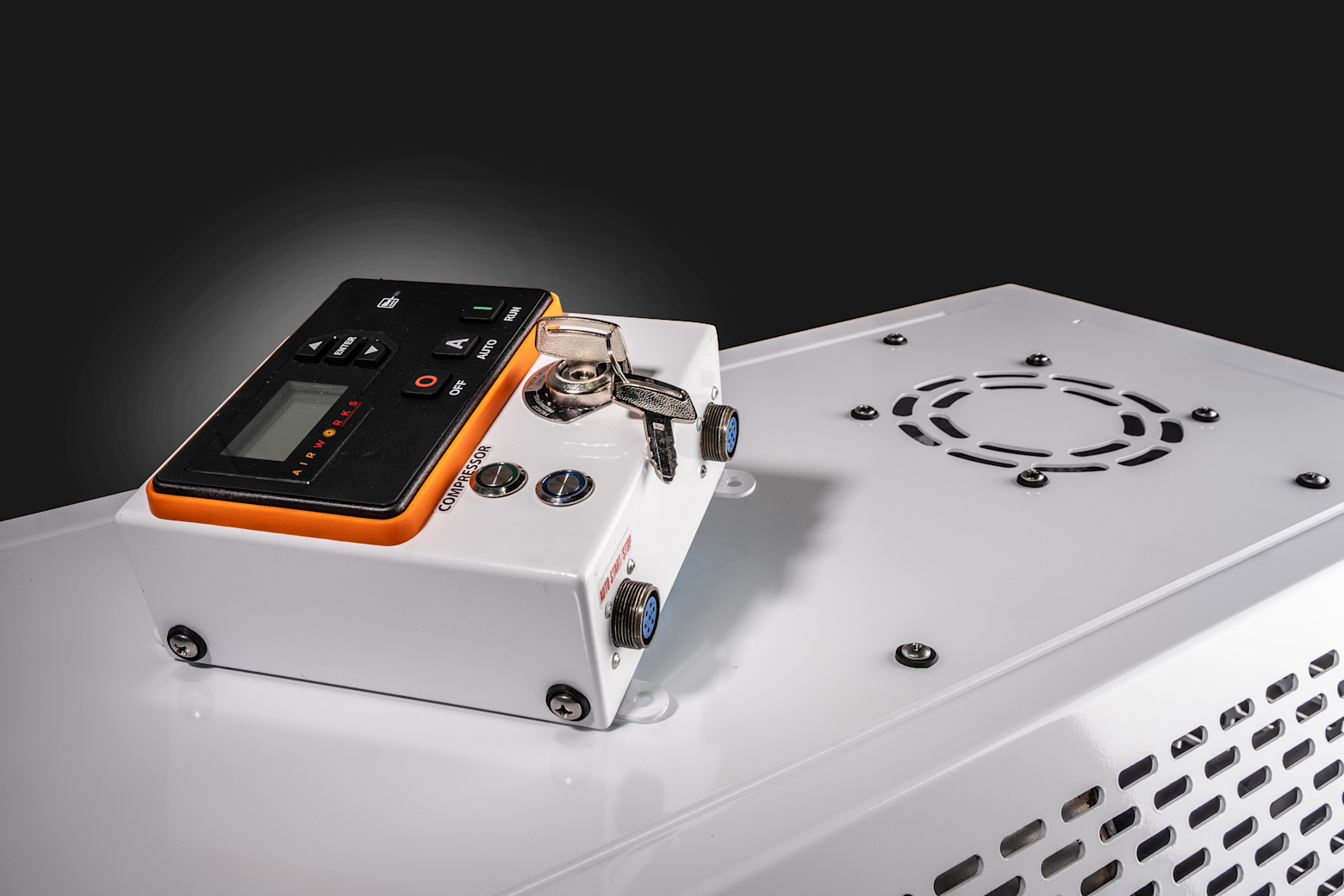

Autostart

Each and every Twister EVO compressor comes standard with a control panel that regulates stopping and starting automatically. This smart module comes with 10' cables and an easily-mounted enclosure, giving you the flexibility to place your EVO's control box wherever you would like.

If you find yourself turning off your compressor to save on fuel while in the middle of a job, this new technology is a game changer for your workflow. Now, you can access up to 235 CFM of clean, compressed air at the pull of a trigger on your air tool.

Optional Features

We provide a variety of custom options to help you tailor your compressor to your exact needs. Below is a list of our most popular options:

  • Positive Air Shutoff (Full Auto, and Electric Manual are both available)

  • Welder

  • Generator

  • High Pressure Package (Up to 235 PSI)

  • Fuel Tank

  • Helicopter Package

Need something else?

No problem, we can implement custom systems and features into your compressor at your request. Get in touch with us at info@airworkscompressors.com to discuss feature requests, and we will be happy to help craft a custom solution for you.
